Omnitracs Navigation for Android User Manual for Version 6.1

Introduction

Omnitracs Navigation optimizes paths for your truck’s specific parameters, resulting in more on-time arrivals and improved safety. The use of historical data, current traffic volume, and road information, like posted road speeds and toll roads, provides you with the most consistent, predictable, and efficient routes.

If you are using Omnitracs Navigation for the first time, you must download maps for your region. If you are in an area with poor cellular or Wi-Fi connectivity, you may not receive updates until your device can communicate over-the- air.

You must agree to the Omnitracs Navigation Legal Notice before the application will open for use.

Note: Maps must be loaded to the device before you can use Omnitracs Navigation. For information on installing and updating maps, see Map Downloads and Map Updates. You may also refer to the Omnitracs Navigation Getting Started Guide for Device Installation for information on installing Omnitracs Navigation and maps.

Be sure you are safely parked before you view or enter route, trips, or destinations.

Menu Options in Omnitracs Navigation

The Menu allows you easy access to many functions in Omnitracs Navigation. Use options within the menu to change information that is important to how your paths are calculated, to gain quick access to specific functions that you use frequently, to send feedback about a trip or incident that occurred, to see and edit trips that are assigned to you, and to search for destinations, waypoints, and POIs on your trip.

To open the menu, tap Menu. To close it, tap the X in the upper corner of the list.

Note: The menu will automatically close after 15 seconds.

Trips – Allows you to add, edit, and remove trips that are assigned to you.

General Settings – Allows you to change what shows on your map and how your map displays, define what roadways or restrictions apply when generating routes, and set triggers for alerts. You can also see your GPS status and map updates.

Path Settings – Allows you to set criteria for your path.

Vehicle Settings – Allows you to set the vehicle parameters.

Report  Problem – Lets you provide feedback when you encounter issues and changes to route conditions such as road closures, construction, changes to POIs, or speed limit changes.

Simulation Mode – Lets you see a trip being run on the map in {{otnav}}, as well as hear the directional cues given during the trip. The trip simulation uses the vehicle and path settings defined on the mobile device. Start a trip and then enable simulation mode to see the trip run through the planned path.

Warning: Simulation mode should not be used while the vehicle is in motion.

Knowledge Base – Provides a link to the Omnitracs Navigation User Manual.

About – Displays information concerning Omnitracs Navigation, the version of the map set that’s installed, your device’s ID, and copyright/disclosures/disclaimers.

Applications –  Other installed Omnitracs applications display at the top or to the side of the menu. Tap the icon to open the application.

Understanding the Map Screen

From the Omnitracs Navigation map screen you can see your location on the map, search for a destination, adjust the zoom level and map orientation, assess your speed, open the Menu, and see your current time to break, if you are using Compliance.

Note: While on a trip, the map will re-center to the vehicle position after 15 seconds of inactivity. When in motion, you are unable to access the Menu.


Search – Use the search function to find locations that you want to add to your trip, using the city center, a full or partial address, previous trip history, and locations marked as favorites. You can also select a location from the map and find points of interest.

Floating Action Button (FAB) – Tap to access options such as Day/Night Mode, Volume, Mark Location for a Report, and Overview.

Next and Subsequent turn – Indicates the next two steps or turns and their distance. Tap the next turn to see turn-by-turn directions.

HOS Clock – Used with Compliance, you will see the total amount of time left until your next required rest break.

Health Alert - Tap for a list of health advisories at your current location or at your destination.

Zoom – Tap these buttons to zoom in or out on the map. You can also pinch and push the map with your fingers to zoom in and out.

Note: The map will return to the default zoom level after 15-30 seconds of inactivity.

CompassIndicates your current direction of travel. The red needle indicates true North. Tap the compass to change the map orientation between three-dimensional view (3D) and two-dimensional view (2D).

Note: If the device's Location setting is turned off or not set to High Accuracy, the No GPS icon displays on the map, instead of the compass,  to indicate poor or no GPS available for the navigation application. When Omnitracs Navigation is not able to gather GPS data, there will also be an audible signal that GPS data is lost.

Speed pane – Depicts your current speed on the left and the posted speed for the road on the right, if known. If speed alerts are enabled and the vehicle’s speed exceeds the posted road speed, the vehicle’s speed displays in yellow. If you exceed the speeding threshold the vehicle’s speed displays in red.
Status Bar – Displays the estimated time of arrival and remaining time and distance until your reach your destination. Tap the orange expand arrow to see your Route Status and full Destination address. On the expanded window, you can Cancel or Arrive the destination and go to your list of trips.

  • Route Status – Provides a quick view of the path and vehicle settings for the trip. The flag color indicates if the settings were viloated. A green flag indicates no violations. An orange flag indicates a violation has occurred.
  • Cancel – Tap to stop traveling to the current destination.
  • Arrive – If you are not automatically marked as having arrived at your destination, you can tap Arrive to manually arrive at the stop. You may need to do this if you park or stop at a location that is not near your stop’s street address.
  • Trips – View the current list of trips available to you.


Notes: Depending on the screen that is displayed, you may not see all items.

Using the Floating Action Button (FAB)

The FAB, the circle with the + sign, allows quick access to a number of features. Depending on the screen you are on, the contents of the menu that pops up changes. When the menu displays, the button changes to an X. Items that display may include:

Overview – See the complete path for your current trip or if your trip has started, from your current location to the end of your trip.

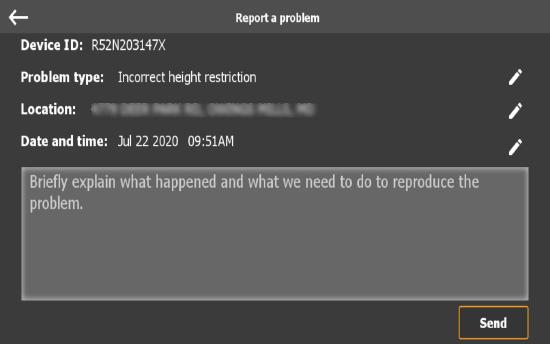

Report a Problem – Record your current location and a timestamp so that you can send feedback to Omnitracs about an incident that occurred on your trip.

Volume – Adjust the volume of Omnitracs Navigation.

Day/Night Mode – Change the screen colors back and forth from light to dark.


Hours of Service in Omnitracs Navigation

If you have Omnitracs Hours of Service integrated with Omnitracs Navigation, you will see the Hours of Service clock on your map screens. The clock tells you how many hours you have remaining until you are required to take a break. The clock is green and changes based on the amount of time you have left before entering violation. The clock turns yellow when there is an hour left before entering violation. When you run out of time on the clock, you are in violation and the clock turns red. If your volume is set, you will hear an audible alert when the clock changes to yellow and red.

When you tap the Hours of Service clock, your Omnitracs Compliance application displays.

Searching for a Destination

You may receive a trip from your dispatcher or you might manually route to individual destinations. Omnitracs Navigation lets you search for a single destination and navigate to it or add it to an existing trip as a waypoint. A waypoint is a location that you must drive through as part of the point-to-point path. You can search using:

  • The city
  • A full or partial address
  • A pre-defined list of points of interest
  • Your destination history
  • A list of your previously saved favorites
  • A location on a map

Note: Depending on the screen you are on, the Search option can be accessed from the status bar or the top of the screen.


After you choose a destination, you can create a route, save the destination as a favorite, or add the destination to an existing trip. For information on following existing trip paths, see Managing Your Trips.

Note: Before you generate a path to a destination, be sure you define your vehicle settings (weight and dimensions) as well as any route restrictions like avoiding toll roads or dirt roads, adherence to hazmat restrictions, or a preference for trucking roads.

Finding a Destination Using the City Search

If you need directions to a city or town, but not a specific location, follow these steps.

  1. Tap Search.
  2. Tap Search for City.
  3. Type in the name of the city and state to which you want to navigate. As you type, you see an alphabetical list of possible matches. If the list is long, tap the down arrow to see a full list of matches, and then use the arrows to page up or down to find the name.
  4. Tap the city or town that is your destination.
  5. Tap Review Location.


Note: If the address is not found, you cannot review the location. If offered, you can tap Search Online to use the advanced search function.

Your destination displays on the map as well as the distance it is from your current location. You can add it as a Favorite, add it to your trip, view an Overview of the calculated path to reach the location, or Start navigating to it.

Finding a Destination Using a Full or Partial Address

If you need directions to a known address, follow these steps.

  1. Tap Search.
  2. Tap Search for Street Address.
    Note: If you are searching for an address that is not in the city where you are currently located, enter the city you want to navigate to in the Search for City line first, then enter a street address.
  3. Type in the full street address, building number and street name, to which you want to navigate. As you type, you see an alphabetical list of possible matches. If the list is long, tap the down arrow to see a full list of matches, and then use the arrows to page up or down to find the name.
    Note: If you do not enter a building number, you will be prompted to choose a range of numbers before you can review the location.
  4. Tap the Street Address that is your destination.
    Note: If the city or street does not appear in the list, type only the first few letters of the name and page through the list of possible matches. Omnitracs recommends that you type fewer letters to populate the list; then page through the list to find the entry. Type more letters to narrow the list. If you didn't provide a building number, you are prompted to select a range of building numbers after you select a street.
  5. Tap Review Location.
    Note: If the address is not found, you cannot review the location. If offered, you can tap Search Online to use the advanced search function.

Your destination displays on the map as well as the distance it is from your current location. You can add it as a Favorite, add it to your trip, view an Overview of the calculated path to reach the location, or Start navigating to it.


Directions to a Point on the Map

If you are on your way to a destination and want to add a location that is not part of your path, you can locate it on the map and mark it. You can then start to navigate to the location, add it to your trip, or mark it as a favorite.

  1. Tap Search.
  2. Tap Select from Map.
  3. Find the location on the map for which you want information and place it within the green crosshair.
  4. Tap the green crosshair. Information about the location displays.
  5. Select an action from the pop-up menu.


Note: Depending on the screen you are on, some options may not be available.

  • Start – your path changes and directs you to the location you marked.
  • Add to Trip – you are prompted to define what kind of stop it is and if you have trips assigned to you, to which trip it should be added.
  • Add as Next Stop – your path changes and you are directed to the location you marked.
  • Add as Waypoint – forces Omnitracs Navigation to route through this location on the way to the next stop.
  • Favorite – saves this location in your list of favorite locations.

Your next destination displays on the map.

Finding a Point-of-Interest (POI)

Omnitracs Navigation has a list of general points-of-interest (POI). This list changes as your current location changes. It can also reflect POIs based on your destination. For a list of POI types and sub-types that can be found in Omnitracs Navigation, see the Appendix.

Notes: Your company can add Fleet POI categories and locations.

  1. Tap Search.
  2. Tap POI.
  3. Tap the POI type that you want to see: All, general POI, or Fleet POI.


  1. Tap a POI category, such as Fuel, Rest Area, or Restaurant. A list of search results displays.

You can change how the list displays and what displays in it.

  • If you are running a trip, at the top of the Search Results screen, tap the arrow and choose where during your path you want to find the POI: Nearby, In Route, or At Destination. The list changes to display your choice.
    Notes: Your choice is saved and used each time you search for a POI. It will remain the same until you change it.
    The Nearby, In Route, and At Destination options are not available unless you have started a trip.
  • Tap the Distance arrow, if you want to sort the POI list in the opposite order, ascending or descending.
  • Tap Close map view to see just the list of search results, without the map view. Show map view displays when you view just the list of search results. Tap it to see the list with the map view again.


  1. Tap the POI destination you want to visit. Use the up and down buttons to page through the list. The POI is highlighted on the map.
  2. Tap the highlight on the POI map to open the navigation map.
  3. Add the POI as a Favorite, add it as the next stop, add it to your trip, view an Overview of the calculated path to reach the location, or Start navigation to it.

Revisiting A Destination

Omnitracs Navigation stores the locations you visited. You can use your History to quickly generate a path to visit them again.

  1. Tap Search.
  2. Tap History.
  3. Find and tap a destination. Use the arrows to page through the list.

You can add the destination as a favorite, add it as the next stop, add it to your trip, view an Overview of the calculated path to reach the location, or Start navigation to it.

Note: Tap Delete to remove a destination that has been saved in your History list.

Using a Favorite Destination

Favorites are locations you visit regularly. They can be added to trips or navigated to directly. You choose which destinations to add to your Favorites list.

To save a destination as a favorite, simply tap Favorite once you have found a destination.

To find a favorite on the map, follow these steps.

  1. Tap Search.
  2. Tap Favorites.
  3. Find and tap a destination. Use the arrows to page through the list.

To remove a destination that has been saved in your Favorites list, tap Delete beside the favorite you want to remove.

Managing Your Trips

A trip is a sequence of destinations or stops which you visit so that you can perform certain tasks. Waypoints may be added to your trip to help navigate you in a particular direction. They are points that you will pass through with no intention of stopping. You may receive a trip from your dispatcher as a printed list of stops that you manually search for and assemble into a trip, through another Omnitracs application, or as a file that you load on the mobile device.

When a trip is started, Omnitracs Navigation calculates a path to the first destination based on the preferred route settings and any restrictions. After you arrive at the destination, perform any tasks, and are ready to depart to the next stop, Omnitracs Navigation marks that stop completed in the Trip list and provides a path to the next stop.

If you are using a transportation management system (TMS) on your mobile device, all stop configuration and task activities are done in that application and paths to the next destination are generated by Omnitracs Navigation when called by the TMS.

Note: By default, trips are stored on your device for 10 hours. This value can be reset by your administrator.

Receiving a Dispatched Trip

If your company integrates with a transportation management system (TMS), Omnitracs Navigation allows you to receive trips from the TMW and calculates a route for the trip. You may have other Omnitracs applications which allow you to run a trip and service stops, these integrated applications  use Omnitracs Navigation to navigate to each stop.

You are notified when you receive a new trip. Tap View, to see the new trip and if necessary, edit or start it. If your vehicle is moving, the notification displays, but you cannot view it. Tap Dismiss to view the trip later at Menu > Trips.


When you receive an update to an existing trip, the on-screen notification informs you that a trip was updated. If the update affects the stop you are currently routed to, you are notified that the current trip changed, and Omnitracs Navigation recalculates the route to the updated stop.

Geocoded Stops on a Trip

A bad geocode can result in bad directions to a destination.. When you receive a trip from dispatch, Omnitracs Navigation attempts to assign a latitude and longitude to any stop on the trip that does not already have them assigned. When viewing the stops on a trip, a green bar indicates a successful geocode, while a red bar and an alert icon display beside stops with unsuccessful geocodes.


Reading Stop Notes for a Trip

If a note is included with a Dispatch trip, a Note icon displays next to the stop. Tap it to read the note.


Reviewing A Trip

Omnitracs Navigation lets you view the path that you will take to the next stop on a trip. Tap the trip you want to see and then tap Overview. The map displays with the path to the next stop.

Adding a Trip

To manually create a new trip, you must first add the trip and then add stops to it.

  1. Tap Menu.
  2. Tap Trips.
  3. Tap Add Trip.
  4. Type in a name for the trip
  5. Tap Enter. Your trip is added to the list of trips.


Now you can add stops to the trip by searching for locations and adding them to the trip.

To rename a trip, tap Edit next to the trip with which you want to work and use the back arrow to delete the old name and then enter a new name for the trip. Save your changes.

To delete a trip, tap Delete next to the trip you want to remove and tap Yes when asked if you are sure.

Modifying a Trip

After you create a trip, or while you are running a trip, you can add, edit, or re-sequence stops and waypoints. You can also rename or delete an existing trip.

Adding a Stop to a Trip

  1. Tap Menu.
  2. Tap Trips.
  3. Tap the trip with which you want to work.
  4. Tap Add Stop.
  5. Tap the type of stop you want to add to the trip or tap Skip.
  6. Search for the destination you want to add.
  7. Tap Add to Trip.
  8. Add additional stops as needed.
  9. Tap the back arrow to return to the map.

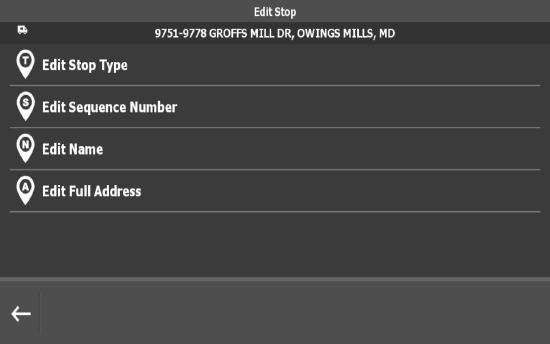

Editing Stops on a Trip

You can change the type of stop you are visiting, the sequence number, the stop name, and the address of the stop.

  1. Tap Menu.
  2. Tap Trips.
  3. Tap the trip with which you want to work.
  4. Tap Edit next to a stop you want to change.
  5. Tap the type of edit you want to make.


  1. Make your changes.
  2. Tap the back arrow to return to the stop list.

Resequencing Stops on a Trip

You can modify your trip by moving stops around on it.

  1. Tap Menu.
  2. Tap Trips.
  3. Tap the trip with which you want to work.
  4. Tap Reorder to change the sequence of the stops on the trip.
  5. Tap the stop you want to move and use the up and down arrows to place it on the trip where you want it.
  6. Tap Done.

Removing Stops from a Trip

  1. Tap Menu.
  2. Tap Trips.
  3. Tap the trip with which you want to work.
  4. Tap Delete next to the stop you want to remove.
  5.  Tap Yes when asked if you want to remove the stop.

Starting a Trip

After you have a trip loaded in Omnitracs Navigation, review it to see if you need to resequence, add, or remove any stops. By default, when you start a trip, Omnitracs Navigation generates a path from your current location to the first stop in the trip. You can always select a different stop and have Omnitracs Navigation plot a route from your current location to that stop.

To start a trip from your current position:

  1. Tap Menu.
  2. Tap Trips.
  3. Tap the trip for which you want to start navigation.
  4. Tap Start.

To start a trip from a stop in the middle of a trip:

  1. Tap Menu.
  2. Tap Trips.
  3. Tap the trip you want to use, use the arrows to page through the list.
  4. Tap the stop you want to start the trip from.
  5. Tap Yes when asked if you want to begin the trip from this stop.

In Route

After you select a destination, Omnitracs Navigation generates the most efficient route based on waypoints, your vehicle parameters, and any path restrictions, and then displays your route and upcoming turns on the map. If you prefer, you can view turn-by-turn directions for that destination.

Viewing Your Path Status

Before you start your trip, you may set or change vehicle and path settings based on the type of load you are carrying or the kind of road you prefer to travel on. The Route Status flag on the banner at the bottom of the map displays green if the trip has adhered to the vehicle and path settings. An orange flag means that a violation has occurred based on a vehicle or path setting. Tap the orange expand arrow to see which setting was or was not followed.


  You can change vehicle and path settings at Menu > Vehicle Settings / Path Settings.

Turn-By-Turn Directions

Omnitracs Navigation defaults to showing you your path on the map. If you prefer to get turn-by-turn directions, tap the area above the map that shows you the next turn on your trip. Directions display that spell out each turn that you will make to reach your destination. Tap that area again to return to the map view.

Understanding Road Types

When viewing the map, you may see that some of the roads display in different colors.


The following are some road types you may encounter.

  • Disabled Road –– The roadway appears as a gray striped line.
  • Blocked Road –– The roadway appears as a red striped line.
  • Heavy Traffic –– The roadway displays with a solid red line.
  • Medium Traffic –– The roadway displays with a solid orange line.

Arriving at a Destination

Omnitracs Navigation can detect that you are at your destination and automatically arrive you at your stop. If you do not want the stop to be marked as arrived, simply toggle Arrived to off. From this prompt, you can also arrive the next stop, start traveling to the next stop, stop the current trip, or choose the next stop. You are also able to quickly access the vehicle and path settings using the Trip Management icons.

If you were not able to park at the location identified by the street address, you can manually mark yourself as arrived.


You Have Arrived

When you reach your destination, Omnitracs Navigation prompts you to verify that you have arrived and automatically marks the stop arrived. If you are not ready to arrive the stop, toggle Arrived to Not Arrived. Mark the stop Arrived when you are ready.

Arriving at the Next Stop

You may mark the next stop as arrived if you already serviced that stop or your current and next stop are very close to each other, like in a strip mall. Toggle Next Stop to Arrived.

You can also start navigating to the next stop. Tap Start.

Choosing the Next Stop

If you need to rearrange stops quickly to meet a delivery time window or if delivery priorities change, you can choose your next stop instead of automatically being routed to the next stop on your trip.

Tap Choose Next Stop.

Stopping the Current Trip

You may need to stop your current trip if you’re going off duty before the trip ends.

Tap Stop Active Trip.

Manually Arriving a Stop

To manually mark yourself at a stop, tap the orange expand arrow. Tap Arrive and you are prompted with the same screen as if you automatically arrived the stop.

Completed or Skipped Stops and Waypoints

When you arrive at a stop or pass a waypoint, Omnitracs Navigation automatically marks it completed, with a green checkmark. If a stop or waypoint is skipped, an orange x mark displays beside the stop or waypoint.


Notes: If the Path Setting Enforce Route Plan is set to No, the most efficient route will be calculated and waypoints may be skipped.

Viewing Health Advisories

Health advisories list the known health restrictions for an area, by county. An icon displays on the map when there is a health advisory near your current location or near your destination.

Note: Information is pulled daily.

To see health advisories, do the following.

  1. Tap the warning icon on the map. A list of advisories displays.
  2. To see advisories near your current location, tap Distance and choose Nearby. The information displayed is based on your current location.
    To see advisories near your destination, tap Distance and choose Destination. The information displayed is based on your next stop.

Note: You can sort the advisories by Distance. Click the arrow to change the list to show nearest to farthest or farthest to nearest.

  1. Tap the Note icon next to a location to see specific details related to the county for which the location is a part.
  2. Tap Show map view to see advisories by location on the map.

HealthAdvisoryList.png  HealthAdvisorysDetails.png

Settings

You may be able to configure some, if not all, settings in Omnitracs Navigation. If you can make changes, you can set vehicle parameters, change what shows on your map and how your map displays, define what roadways or restrictions apply when generating routes, and set triggers for alerts that tell you when you are speeding or when there is something on your route that you need to be informed of. Other information like GPS status, map updates, and current software version may be used to troubleshoot problems if they arise.

Note: Depending on permissions, you may not be able to make changes to some settings. If a setting is locked, you will see a closed padlock.

Vehicle Settings

Omnitracs Navigation uses the vehicle profile (dimensions and weight) to determine what roads to avoid when generating a path. Define or review these settings to ensure they are accurate, before you generate a route.

  1. Tap Menu > Vehicle Settings. You can also tap the Vehicle Parameter icon on the Trip page or when previewing a location found in a Search.
  2. Tap on any parameter to adjust it.


Note: The units that display for the parameters are defined under Menu > General Settings > Units.

Parameter     Definition
Overall Length Enter the trailer length in feet and inches/meters and centimeters.
Height     Enter the vehicle’s height (the highest part of the vehicle) in feet and inches/meters and centimeters.
Width Enter the vehicle's width (the widest part of the vehicle) in feet and inches/meters and centimeters.
Gross Vehicle Weight Enter the vehicle’s gross weight (including load) in pounds/kilograms.
Commercial     Toggle this setting ON to indicate that you want to be routed over commercial vehicle-approved roadways only. Toggle it off to generate routes that use commercial and non-commercial vehicle-approved roadways.

Path Settings

Path settings are related to the types of roads you want to travel on and help to determine the best route. You can turn any of these options on or off after a route has already been calculated and the route will be recalculated using your new preferences.

  1. Tap Menu > General Settings > Path Settings. You can also tap the Path Parameter icon on the Trip page or when previewing a location found in a Search.
  2. Turn settings on or off as appropriate.

Parameter     Behavior
Use Tollways Paths may include toll roads. Toggle this setting to No to avoid toll roads when generating the route. Paths may be less efficient.
Use U-Turns Paths may include U-Turns.  Toggle this setting to No to avoid adding U-Turns to your path.
Use Dirt Roads Paths may include dirt roads. Toggle this setting to No to avoid adding dirt roads to your path.
Ignore Legal Restrictions Paths may include roads that are restricted for reasons such as size or class of vehicle. Toggle this setting to Yes to allow your generated paths to include restricted roads.
Use Local Roads Paths may include local roads. Toggle this setting to Yes to allow for local roads, which large vehicles should not travel on, to be added to your path.
Prefer Trucking Roads Paths will favor state highways and interstates. Toggle this setting to Yes to favor state highways and interstates that are part of the National Network based on the Surface Transportation Assistance Act.
Use Historic Traffic Historic traffic patterns are considered when calculating routes so the most efficient paths are generated. Toggle this setting to Yes to consider historic traffic patterns when generating paths.
Use Real Time Traffic Real time traffic is considered when calculating routes. Toggle this setting to Yes to have current traffic conditions considered when calculating a route. When there is a faster path available, a new path suggestion is read aloud and displays on the screen. The path is automatically re-routed unless the suggestion is manually dismissed.
Minimum ETA Improvement for a New Recommendation Enter the minimum number of minutes that a change must save on a route to have a new path suggested. This option is only available if Use Real Time Traffic is selected and Enforce Route Plan is not selected.
Enforce Route Plan Applies only when the route has waypoints. When set to No, the most efficient route will be calculated by skipping one or more waypoints. When set to Yes, the path is calculated to follow the plan and continue to the next waypoint.
Hazmat Class  Turn on the appropriate hazardous material classes and the generated paths will only travel on roads where that class of hazardous material is allowed.

Map Settings

You can determine which POIs display on your map, if your map zooms automatically, how your map positions on the screen, and which maps are loaded on your mobile device.

  1. Tap Menu > General Settings > Map Settings.
  2. Tap on any setting to adjust it.

Auto Zoom

When Off, you manually adjust the zoom using the + and buttons on the map. When On, the zoom level of the map dynamically adjusts to show the level of detail you need at that point of your route.

POI On/Off

You may select which, if any, points-of-interest (POIs) display on the map. You can show or hide all POIs by checking or unchecking the box next to All. You can also choose which types of POIs display. If a POI type has a + next to it, there are sub types available. Tap the type to select which sub-types of POIs display. When a partial list of POIs is selected, the boxes next to the POI type and All show a - instead of a check mark.


You can view a list of all POI types and sub-types. The sub-types for restaurant and hote;/motel also break down into a third level, which is reflected in subsequent tables.

Map Orientation

You can set your map to display as Heading Up, North Up, or 3D. In Heading Up orientation, the map continuously rotates so that the vehicle’s current heading is always at the top of the map. In North Up orientation, north is always at the top and the map does not turn as the vehicle turns. The 3D setting uses a heading up orientation but displays the map in a three-dimensional view.

When viewing the map, tap the compass to cycle through these orientations. If you zoom out to a very large scale, the map automatically switches to North Up orientation, but switches back to your chosen orientation after you zoom back in.

Map Style

You can set your map to show in a color other than the Omnitracs Navigation default and change the screen brightness, to make it easier to see your maps in low light situations.

Tap Menu > General Settings > Map Settings > Map Style.

Parameter Definition
Map Color Choose the color of the roads on the map to make it easier to distinguish the road when other features clutter the map.
Night Mode Toggle Night Mode to Yes or No.  When toggles to No, Day Mode is brighter and easy to see when there is a lot of surrounding light. When toggles to Yes, Night Mode dims the screen so that in low light situations your eyes don’t have to adjust between a bright screen and the road.
Show Buildings Toggle to Yes to see building outlines displayed on the map.

Map Download

Before you can use Omnitracs Navigation, you must have maps installed on your mobile device. You can select all US or all Canadian maps or you can download specific regions and states or provinces. By downloading regional or state maps, less storage is used on the mobile device and both installation and updates complete faster.

If you are not automatically prompted to install maps or if you want to install different or more maps, tap Menu > General Settings > Map Settings > Map Download. Choose the maps you want to download and tap Download.


When you tap Download for the maps you want to install, you see information about the current map version, region, required space for download, available internal space on your mobile device, available external space on an SD Card, and if the connection is correct so that you can begin the download. Tap Download Maps to start the download.

Maps must finish downloading before you can use Omnitracs Navigation. You must force close and re-launch Omnitracs Navigation before you see the new maps.

Updating Maps

If the maps on your mobile device have an update available, Omnitracs Navigation prompts you to update them.


When you receive a prompt that states newer maps are available, tap Continue.

Note: You are not required to update your maps immediately. To delay the map upgrade, tap Cancel.

Information about the new maps displays, such as the current and new map versions, the regions that are included in the update, required and available storage, and connection information.


Tap Update Maps to have your out-of-date maps replaced with the newer versions. You are prompted when the maps are updated and ready to use. Tap Continue to start using the new maps.

Manually Updating Maps

If you disregard a newer map prompt or you choose not to show new map prompts, when updates are available, you can manually update maps from the Map Update option under Map Settings. Tap Menu > General Settings > Map Settings > Map Updates.

Note: You may not see the Map Update button if the maps loaded to your mobile device are up-to-date.

Map Data Storage Maintenance

Omnitracs Navigation allows you to store your maps internally, in your mobile device's storage area, or externally on an SD Card. If you have two separate map data sets, you can choose which location to use with Navigation. Map Data Storage Maintenance also allows you to delete maps from a location.

Note: It is recommended that you use a Class 10 SD card with at least 16GB of storage.

When you open Map Data Storage Maintenance, if more than one set of maps is available, information about each map location displays. The information provided includes the Location, Version of maps, and the Directory where the maps are stored.

The maps that are being used with Navigation are marked as Currently Used. To use a different set of maps, tap Use this Map Data for the maps you want to use. Confirm the change and restart Navigation to use the new maps.

You have the option to delete a set of maps. To delete maps from a directory, tap Delete for the maps you want to remove. Confirm the change.

Note: If you delete the map data that is being used by Navigation, new map data must be downloaded or located before the application can be used.


Note: When Navigation is first installed on the device, if map data is not found, the worker is given the option to select the location of the map data, Internal or External. If necessary, the worker can tap the Storage Location edit icon on the Map Download screen and change where the maps are stored.

Alerts

Alerts occur when you exceed a threshold or when there is something that you need to be informed of, while you are running your trip.

Note: Depending on settings, you may not be able to change alert settings on your mobile device.

Speed Alerts

Speed alerts are audible on-screen notifications triggered by exceeding a configurable speed threshold for a set duration.

Tap Menu > General Settings > Alerts and Reports > Speed Alerts.

Parameter     Definition
Speed Alerts Turn the alert On or Off for this device.
Alert Sound Turn this setting on if you want an audible alert to sound when you exceed the speeding threshold and speeding duration. This sound will repeat every 15 seconds until you reduce speed or the posted road speed changes.
Speeding Threshold Set how much faster than the posted road speed that the vehicle needs to be moving to trigger a speed alert. The threshold can be set to any speed between 0-20 mph or 0-40 km/h.
Speeding Duration Set the duration of time the speeding threshold must be exceeded before an alert is triggered. The duration can be set to any length of time between 0 seconds and 30 minutes.

Risk of Grounding

The Risk of Grounding alert lets you know when there is a risk nearby of your vehicle grinding on the road surface and getting stuck.

Tap Menu > General Settings > Alerts and Reports Risk of Grounding.

Parameter Definition
Risk of Grounding Turn the alert On or Off for this device.
Alert Sound Turn this setting on if you want an audible alert to sound when you reach the Alert Distance that is set.
Alert Distance Set the distance away from the grounding risk that you want to be when an alert is triggered. The distance can be set between .1 and 1.0 miles.

Protected Railway Crossing

The Protected Railway Crossing alert lets you know when a railway crossing with automatic barriers and signals is nearby, so you can approach it with caution.

Tap Menu > General Settings > Alerts and Reports > Protected Railway Crossing.

Parameter Definition
Protected Railway Crossing Turn the alert On or Off for this device.
Alert Sound Turn this setting on if you want an audible alert to sound when you reach the Alert Distance that is set.
Alert Distance Set the distance away from the railway crossing that you want to be when an alert is triggered. The distance can be set between .1 and 1.0 miles.

Unprotected Railway Crossing

The Unprotected Railway Crossing alert lets you know when a railway crossing that does not have barriers or signals is nearby, so you can approach it with caution.

Tap Menu > General Settings > Alerts and Reports > Unprotected Railway Crossing.

Parameter Definition
Unprotected Railway Crossing Turn the alert On or Off for this device.
Alert Sound Turn this setting On if you want an audible alert to sound when you reach the Alert Distance that is set.
Alert Distance Set the distance away from the railway crossing that you want to be when an alert is triggered. The distance can be set between .1 and 1.0 miles.

Sounds – Volume

Toggle this setting On to have Omnitracs Navigation use your mobile device volume setting. You can then choose to use the devices maximum volume or 50% of the current volume setting. When this setting is Off, Omnitracs Navigation sound is muted.

Tap Menu > General Settings > Sounds > Volume.

Parameter Definition
Navigation Sound Turn On to have the current volume settings on the device used when speaking messages and alerts.  If Navigation Sound is turned Off, messages and alerts will not be read aloud.
Max Volume Turn On to have Navigation Sound use the maximum volume of the device. If Off, the current volume setting is used.
Navigation Sound When Device Has No Volume Turn On to have Navigation Sound turn on the device's volume to speak messages and alerts if the device's volume is turned off. If Off, messages and alerts will not be read aloud when the device volume is off.

Units

Choose which unit type you want to view on your mobile device, U.S. Standard or Metric.

Tap Menu > General Settings > Units.

GPS Status

The GPS status gives the current signal strength of the mobile device, location of the vehicle according to GPS calculations, and the Doppler (DOP) value. It also identifies how many GPS satellites are seen and how many are being used to calculate the current position.

Tap Menu > General Settings > GPS Status.

Simulation Mode

You can use the simulation mode to see a trip being run and hear the turn-by-turn cues that Omnitracs Navigation will direct you to take when running the trip. The simulation mode uses the vehicle and path settings defined on your mobile device. You can change your settings and run the trip simulation again to see if changing your settings results in a different path.

To start simulation mode, do the following.

  1. Start a trip.
  2. Press Menu.
  3. Press Enable Simulation Mode.

Omnitracs Navigation quickly runs through the trip on the map, simultaneously speaking each turn that is part of the path

Warning: You should not use simulation mode while the vehicle is in motion.

To end simulation mode, do the following:

  1. Press Menu.
  2. Press Disable Simulation Mode.

Reporting a Problem

Omnitracs Navigation provides the most current road data available by dynamically adjusting path generation, based on feedback from drivers as they encounter issues and changes to route conditions such as road closures, construction, changes to POIs, or speed limit changes.

Note: Report a Problem is used by Omnitracs to improve how paths are generated. This information is not sent to your dispatcher.

Create an Incident

You can quickly record your current location and a timestamp so that you can send feedback to Omnitracs about an incident that occurred on your trip.

  1. Tap the Floating Action Button (FAB).
  2. Tap Report a Problem.

A message displays stating that your location is saved. Later, when you are safely parked, you can add more details to the incident before sending it.

Sending an Incident

After you stop the vehicle, you can modify and submit the incident you recorded or submit other comments. These incidents are not seen by your dispatcher.

  1. Tap Menu.
  2. Tap Report a Problem.
  3. Tap Edit to view the incident for which you want to enter more details. The Report a problem screen displays.

Notes: If you did not create an incident while on the road, you can tap Add to create a new incident.


  1. Tap the Edit icon next to Problem type, Location, and Date and time to make any necessary changes.
  2. Tap the problem type in the list or find the location on the map to edit the information for the incident. Use the date/time options to change the date and time that the incident occurred. The Report a problem screen displays. If you are not automatically returned, tap Back to return to the Report a Problem screen.


  1. Enter any comments you think are necessary.
  2. Tap Send.

About

The About screen displays the version of Navigation you are running, the version of the map set that’s installed, your device’s ID, and copyright/disclosures/disclaimers as related to Omnitracs Navigation and our partners.


Tap Menu > About.

Contact Us

If you have any questions or concerns, please feel free to contact us.
Email: www-ocus@omnitracs.com
Phone: 1‐800‐541‐7490

  • Was this article helpful?
